IRS2111PBF

HALF-BRIDGE DRIVER

IRS2111PBF Features

* Floating channel designed for bootstrap operation

* Fully operational to +600 V

* Tolerant to negative transient voltage, dV/dt

* Gate drive supply range from 10 V to 20 V

* Undervoltage lockout for both channels

* CMOS Schmitt-triggered inputs with

IRS2111PBF General Description

The IRS2111 is a high voltage, high speed power MOSFET and IGBT driver with dependent high and low side referenced output channels designed for half-bridge applications. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic input is compatible with stan.

IRS2111PBF Datasheet (352.22 KB)

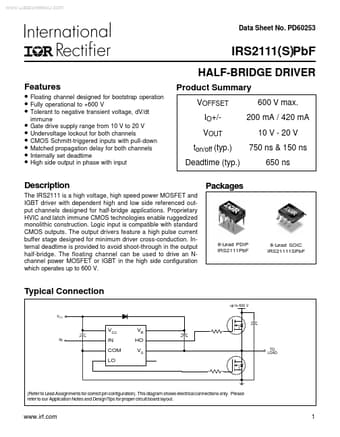

Preview of IRS2111PBF PDF

Datasheet Details

Part number:

IRS2111PBF

Manufacturer:

International Rectifier

File Size:

352.22 KB

Description:

Half-bridge driver.
