IRS2111SPBF HALF-BRIDGE DRIVER

The IRS2111 is a high voltage, high speed power MOSFET and IGBT driver with dependent high and low side referenced output channels designed for half-bridge applications. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic input is compatible with stan.

IRS2111SPBF Features

* Floating channel designed for bootstrap operation

* Fully operational to +600 V

* Tolerant to negative transient voltage, dV/dt

* Gate drive supply range from 10 V to 20 V

* Undervoltage lockout for both channels

* CMOS Schmitt-triggered inputs with

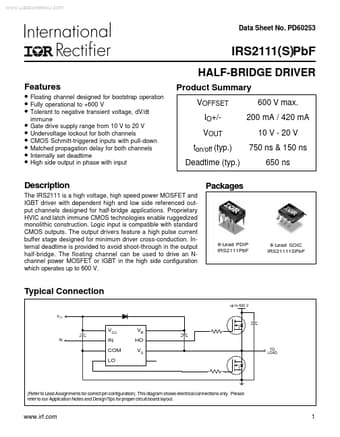

IRS2111PBF_InternationalRectifier.pdf

IRS2111SPBF Datasheet Preview — This datasheet PDF includes multiple part numbers: IRS2111SPBF, IRS2111PBF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRS2111SPBF, IRS2111PBF

Manufacturer:

International Rectifier

File Size:

352.22 KB

Description:

Half-bridge driver.

Note:

This datasheet PDF includes multiple part numbers: IRS2111SPBF, IRS2111PBF.
Please refer to the document for exact specifications by model.
