IRS2505LPBF

SOT-23 Boost PFC Controller

IRS2505LPBF Features

* Critical-conduction mode PFC control High PF and ultra-low THD Wide load and line range Regulated and programmable DC bus voltage No secondary winding required MOSFET cyc

IRS2505LPBF General Description

The IRS2505 is a control IC for boost-type PFC circuits operating in critical-conduction mode. The IC incorporates a free-running frequency oscillator with on- and off-time control of the boost power MOSFET without the need for a secondary winding. Also included in the design is over-voltage protect.

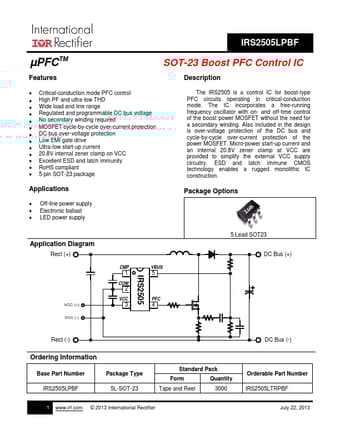

IRS2505LPBF Datasheet (338.89 KB)

Preview of IRS2505LPBF PDF

Datasheet Details

Part number:

IRS2505LPBF

Manufacturer:

International Rectifier

File Size:

338.89 KB

Description:

Sot-23 boost pfc controller.
