IRS25091SPbF - HALF-BRIDGE DRIVER

Datasheet Summary

Description

The IRS25091 is a high-voltage, high-speed power MOSFET and IGBT half-bridge driver with independent high and low side referenced output channels.

Proprietary HVIC and latch immune CMOS technologies enable a ruggedized monolithic construction.

Features

  • 600V half-bridge driver.
  • Tolerant to negative transient voltages.
  • Gate drive supply range from 10 V to 20 V.
  • Under-voltage lock-out for both channels.
  • 3.3 V, 5 V and 15 V input logic compatible.
  • Cross-conduction prevention logic.
  • Matched propagation delay for both channels.
  • High side output in phase with IN input.
  • Internal 530 ns dead-time, and programmable up to 5usec with external resistor.
  • Lower di/dt gate driver for better noise immunity.

📥 Download Datasheet

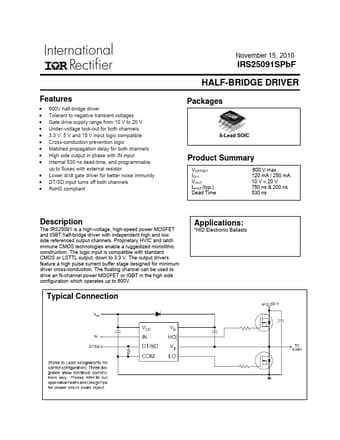

Datasheet preview – IRS25091SPbF

📁 Similar Datasheet

  • IRS2505LPBF - Boost PFC and SMPS Controller (Infineon)
  • IRS25411S - Synchronous buck LED driver (Infineon)
  • IRS25752LPBF - SOT-23 High-Side Gate Driver (Infineon)
  • IRS20752LPBF - SOT-23 High-Side Gate Driver (Infineon)
  • IRS21867S - HIGH AND LOW SIDE DRIVER (IRF)
  • IRS2452AM - Class-D Audio-IC (Infineon)
  • IRS2461S - 400V Class D Audio Amplifier Controller (Infineon)
  • IRS2890DS - Half-Bridge Driver (Infineon)
  • IRS2982S - LED/SMPS FLYBACK CONTROLLER (Infineon)
  • IRS2982SPBF - LED/SMPS FLYBACK CONTROLLER (Infineon)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text
Features  600V half-bridge driver  Tolerant to negative transient voltages  Gate drive supply range from 10 V to 20 V  Under-voltage lock-out for both channels  3.3 V, 5 V and 15 V input logic compatible  Cross-conduction prevention logic  Matched propagation delay for both channels  High side output in phase with IN input  Internal 530 ns dead-time, and programmable up to 5usec with external resistor.  Lower di/dt gate driver for better noise immunity  DT/SD input turns off both channels  RoHS compliant November 15, 2010 IRS25091SPbF HALF-BRIDGE DRIVER Packages 8-Lead SOIC Product Summary VOFFSET IO+/VOUT ton/off (typ.) Dead Time 600 V max.
