IRS2607DSPBF

HIGH AND LOW SIDE DRIVER

IRS2607DSPBF Features

* Floating channel designed for bootstrap operation Packages

* Fully operational to +600 V

* Tolerant to negative transient voltage, dV/dt immune

* Gate drive supply range from 10 V to 20 V

* Undervoltage lockout for both channels

* 3.3 V, 5 V, a

IRS2607DSPBF General Description

The IRS2607D is a high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, dow.

IRS2607DSPBF Datasheet (1.72 MB)

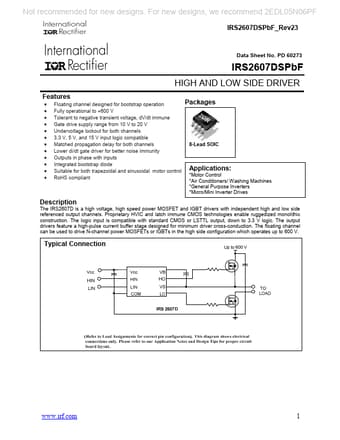

Preview of IRS2607DSPBF PDF

Datasheet Details

Part number:

IRS2607DSPBF

Manufacturer:

International Rectifier

File Size:

1.72 MB

Description:

High and low side driver.
Not recommended for new designs. For new designs, we recommend 2EDL05N06PF IRS2607DSPbF_Rev23 Data Sheet No. PD 60273 IRS2607DSPbF HIGH AND LOW SIDE.
