IRS2608DSPBF

High Speed Power MOSFET And IGBT Driver

IRS2608DSPBF Features

* Floating channel designed for bootstrap operation Fully operational to +600 V Tolerant to negative transient voltage

* dV/dt immune www.DataSheet4U.com

* Gate drive supply range from 10 V to 20 V

* Undervoltage lockout for both channels

* 3.3 V, 5 V and 15 V input log

IRS2608DSPBF General Description

The IRS2608D(S) is a high voltage, high speed power MOSFET an IGBT driver with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down.

IRS2608DSPBF Datasheet (754.25 KB)

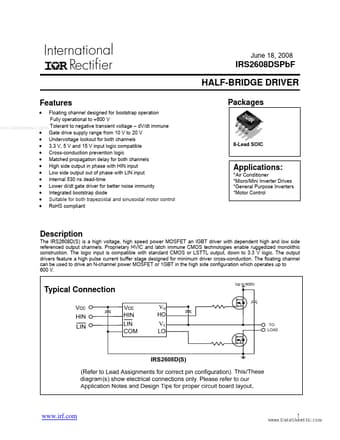

Preview of IRS2608DSPBF PDF

Datasheet Details

Part number:

IRS2608DSPBF

Manufacturer:

International Rectifier

File Size:

754.25 KB

Description:

High speed power mosfet and igbt driver.
