MBR160, MBR150 - SCHOTTKY RECTIFIER

MBR160 Description

SCHOTTKY RECTIFIER Bulletin PD-20589 rev.C 12/04 MBR150 MBR160 1.0 Amp Major Ratings and Characteristics Characteristics IF(AV) Rectangular wavefo.
Features The MBR150, MBR160 axial leaded Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

MBR160 Applications

* are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection. Low profile, axial leaded outline High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance Very low forward voltage drop High frequency operation Guard

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR160, MBR150. Please refer to the document for exact specifications by model.

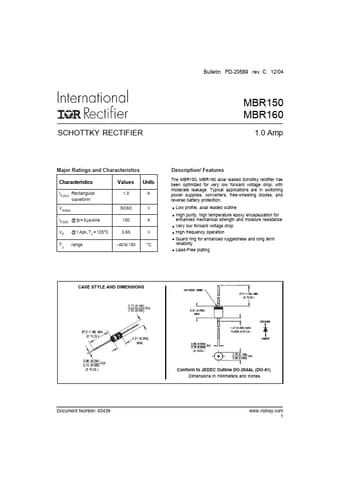

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR160, MBR150
Manufacturer
International Rectifier
File Size
107.63 KB
Datasheet
MBR150-InternationalRectifier.pdf
Description
SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MBR160, MBR150.
Please refer to the document for exact specifications by model.
