20N50C1 Features

* 15A and 20A, 400V and 500V

* VCE(ON) 2.5V

* TFI 1µs, 0.5µs

* Low On-State Voltage

* Fast Switching Speeds

* High Input Impedance

* No Anti-Parallel Diode Applications

* Power Supplies

* Motor Drives

* Protection Circu

20N50C1 General Description

The HGTH20N40C1, HGTH20N40E1, HGTH20N50C1, HGTH20N50E1, HGTP15N40C1, HGTP15N40E1, HGTP15N50C1 and HGTP15N50E1 are n-channel enhancement-mode insulated gate bipolar transistors (IGBTs) designed for high-voltage, low on-dissipation applications such as switching regulators and motor drivers. These typ.

20N50C1 Datasheet (57.14 KB)

Preview of 20N50C1 PDF

Datasheet Details

Part number:

20N50C1

Manufacturer:

Intersil Corporation

File Size:

57.14 KB

Description:

Hgth20n50c1.

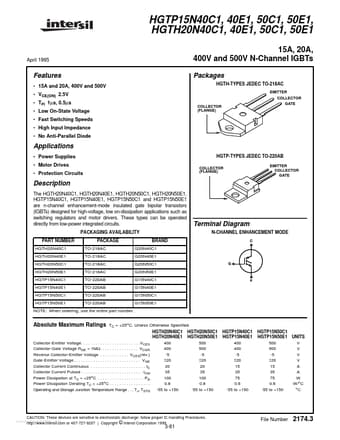

HGTP15N40C1, 40E1, 50C1, 50E1, HGTH20N40C1, 40E1, 50C1, 50E1 April 1995 15A, 20A, 400V and 500V N-Channel IGBTs Packages HGTH-TYPES JEDEC TO-218AC EM.
