20N50-HC Datasheet - UTC

20N50-HC N-CHANNEL POWER MOSFET

The UTC 20N50-HC is a N-channel enhancement MOSFET using UTC’s advanced technology to provide the customers with perfect RDS(ON), high switching speed, high current capacity and low gate charge. The UTC 20N50-HC is universally applied in low voltage such as automotive, high efficiency switching for .

20N50-HC Features

* RDS(ON) ≤ 0.27 Ω @ VGS=10V, ID=10A

* High Switching Speed

* SYMBOL (2) Drain (5) Drain Power MOSFET (1) Gate (3) Source TO-220F1 / TO-220F2 TO-263 / TO-247 / TO-3P (1) Gate (2) Driver Source (3, 4) Power Source DFN8080-4 www.unisonic.com.tw Copyright © 2023 Unisonic Technologie

20N50-HC-UTC.pdf

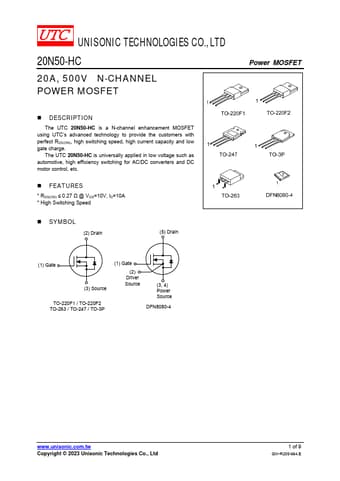

Preview of 20N50-HC PDF
20N50-HC Datasheet Preview Page 2 20N50-HC Datasheet Preview Page 3

Datasheet Details

Part number:

20N50-HC

Manufacturer:

UTC

File Size:

674.50 KB

Description:

N-channel power mosfet.
