20NM50 - 500V N-CHANNEL SUPER-JUNCTION MOSFET

The UTC 20NM50 is a Super Junction MOSFET Structure and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and a high rugged avalanche characteristics.

This power MOSFET is usually used at AC-DC converters for power applications.

*

20NM50 Features

* RDS(ON) ≤ 0.24 Ω @ VGS=10V, ID=10A

* Fast Switching Capability

* Avalanche Energy Specified

* Improved dv/dt Capability, High Ruggedness

* SYMBOL 2.Drain Power MOSFET 1.Gate 3.Source

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free 20NM50L-TA3-T 20NM

20NM50-UTC.pdf

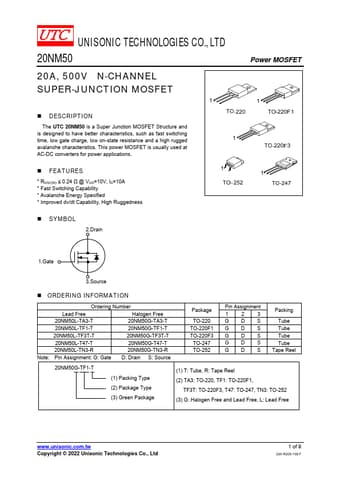

Preview of 20NM50 PDF
