20NM60 Datasheet - STMicroelectronics

20NM60 - N-CHANNEL POWER MOSFET

The MDmesh™ is a new revolutionary MOSFET technology that associates the Multiple Drain process with the Company’s PowerMESH™ horizontal layout.

The resulting product has an outstanding low on-resistance, impressively high dv/dt and excellent avalanche characteristics.

The adoption of the Company’s

20NM60 Features

* TYPE VDSS RDS(on) ID STP20NM60 STP20NM60FP STB20NM60 STB20NM60-1 STW20NM60 600 V 600 V 600 V 600 V 600 V < 0.29 Ω < 0.29 Ω < 0.29 Ω < 0.29 Ω < 0.29 Ω 20 A 20 A 20 A 20 A 20 A s TYPICAL RDS(on) = 0.25 Ω s HIGH dv/dt AND AVALANCHE CAPABILITIES s 100% AVALANCHE TESTED s LOW INPUT CAPACITANCE A

20NM60-STMicroelectronics.pdf

Preview of 20NM60 PDF

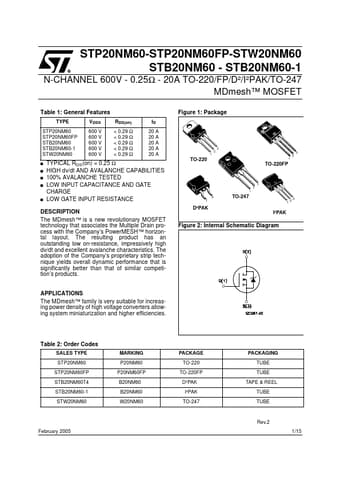

20NM60 Datasheet Preview Page 2 20NM60 Datasheet Preview Page 3

Datasheet Details

Part number:

20NM60

Manufacturer:

STMicroelectronics ↗

File Size:

353.43 KB

Description:

N-channel power mosfet.
