20NM70

N-CHANNEL POWER MOSFET

20NM70 Datasheet (217.48 KB)

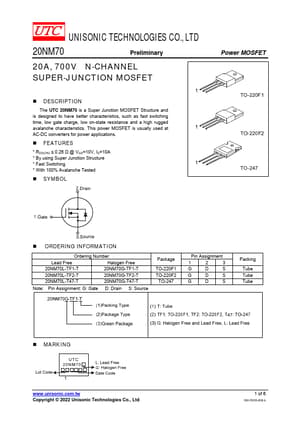

Preview of 20NM70 PDF

Datasheet Details

Part number:

20NM70

Manufacturer:

UTC

File Size:

217.48 KB

Description:

N-channel power mosfet.

20NM70 Features

* RDS(ON) ≤ 0.26 Ω @ VGS=10V, ID=10A

* By using Super Junction Structure

* Fast Switching

* With 100% Avalanche Tested

* SYMBOL Power MOSFET

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free 20NM70L-TF1-T 20NM70G-TF1-T 20NM70L-TF2-T 20NM70G-TF2-T 20NM70L

20NM70 General Description

The UTC 20NM70 is a Super Junction MOSFET Structure and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and a high rugged avalanche characteristics. This power MOSFET is usually used at AC-DC converters for power applications.
* F.
