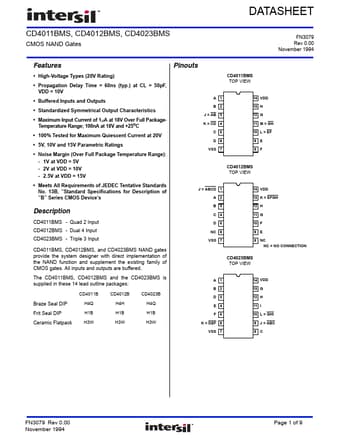

CD4011BMS Datasheet - Intersil Corporation

CD4011BMS - CMOS NAND Gates

of “B” Series CMOS Device’s J = ABCD 1 A 2 B 3 CD4012BMS TOP VIEW 14 VDD 13 K = EFGH 12 H 11 G 10 F 9 E 8 NC NC = NO CONNECTION Description CD4011BMS - Quad 2 Input CD4012BMS - Dual 4 Input CD4023BMS - Triple 3 Input CD4011BMS, CD4012BMS, and CD4023BMS NAND gates provide the system designer with .

CD4011BMS Features

* High-Voltage Types (20V Rating)

* Propagation Delay Time = 60ns (typ.) at CL = 50pF, VDD = 10V

* Buffered Inputs and Outputs

* Standardized Symmetrical Output Characteristics

* Maximum Input Current of 1µA at 18V Over Full PackageTemperature Range; 100nA at
