HA2520 Datasheet - Intersil Corporation

HA2520 20MHz/ High Slew Rate/ Uncompensated/ High Input Impedance/ Operational Amplifiers

only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliab.
HA-2520, HA-2522, HA-2525 Data Sheet September 1998 File Number 2894.3 20MHz, High Slew Rate, Uncompensated, High Input Impedance, Operational Amplifiers HA-2520/2522/2525 comprise a series of operational amplifiers delivering an unsurpassed combination of specifications for slew rate, bandwidth and settling time. These dielectrically isolated amplifiers are controlled at close loop gains greater than 3 without external compensation. In addition, these high performance components also provide lo.

HA2520 Datasheet (94.91 KB)

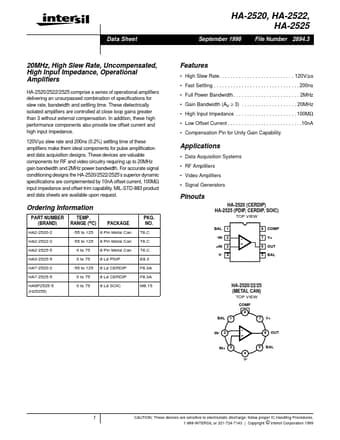

Preview of HA2520 PDF
HA2520 Datasheet Preview Page 2 HA2520 Datasheet Preview Page 3

Datasheet Details

Part number:

HA2520

Manufacturer:

Intersil Corporation

File Size:

94.91 KB

Description:

20mhz/ high slew rate/ uncompensated/ high input impedance/ operational amplifiers.
