HA2556883 - Wideband Four Quadrant Analog Multiplier (Voltage Output)

HA2556883 Description

HA2556/883 July 1994 Wideband Four Quadrant Analog Multiplier (Voltage Output) .
The HA-2556/883 is a monolithic, high speed, four quadrant, analog multiplier constructed in Intersil’ Dielectrically Isolated High Frequency Process.

HA2556883 Features

* This Circuit is Processed in Accordance to MIL-STD883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
* High Speed Voltage Output
* . 450V/µs (Typ)
* Low Multiplication error
* . 1.5% (Typ)
* Input Bias Curren

HA2556883 Applications

* is demonstrated further by the Y Channel 0.1dB gain flatness to 5.0MHz, 1.5% multiplication error, -50dB feedthrough and differential inputs with 8µA bias current. The HA-2556 also has low differential gain (0.1%) and phase (0.1o) errors. The HA-2556/883 is well suited for AGC circuits as well as mix

📥 Download Datasheet

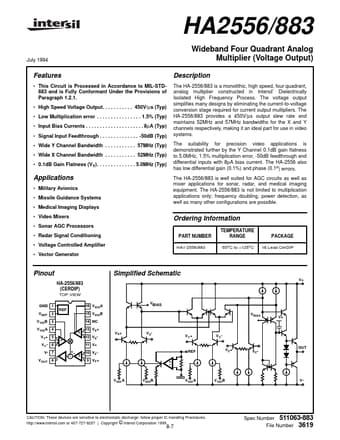

Preview of HA2556883 PDF
