HGTP10N40E1 Datasheet, Igbt, Intersil Corporation

HGTP10N40E1 Features

• Igbt
• 10A and 12A, 400V and 500V
• VCE(ON): 2.5V Max.
• TFI: 1µs, 0.5µs
• Low On-State Voltage
• Fast Switching Speeds
• High Input Impedance

PDF File Details

Part number:

HGTP10N40E1

Manufacturer:

Intersil Corporation

File Size:

38.89kb

Download:

📄 Datasheet

Description:

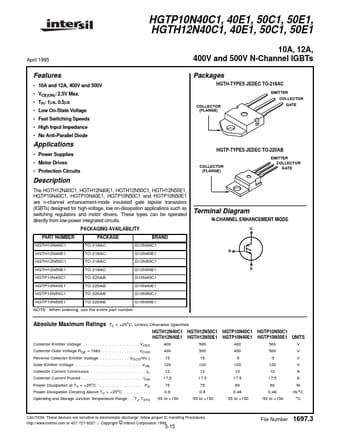

N-channel igbt. The HGTH12N40C1, HGTH12N40E1, HGTH12N50C1, HGTH12N50E1, HGTP10N40C1, HGTP10N40E1, HGTP10N50C1 and HGTP10N50E1 are n-channel enhanceme

HGTP10N40E1 Application

• Applications HGTP-TYPES JEDEC TO-220AB
• Power Supplies
• Motor Drives
• Protection Circuits COLLECTOR (FLANGE) EMITTER CO
