HI5630

80MSPS A/D Converter

HI5630 Features

* Triple 8-Bit A/D Converter on a Monolithic Chip

* Sampling Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . 80MSPS

* ENOB (fIN = 1MHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.6

* Wide Full Power Input Bandwidth . . . . . . . . . . . . 300MH

HI5630 General Description

PIN NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 NAME DGND DVDD GD1 GD2 GD3 DGND DVDD CLK OUT CLK IN DVDD DGND GD4 GD5 GD6 DVDD DGND NC GD7 RD0 RD1 RD2 RD3 RD4 DGND DVDD RD5 RD6 RD7 NC AGND AVDD AGND DESCRIPTION Digital Ground Digital Supply (5.0V) Green.

HI5630 Datasheet (698.70 KB)

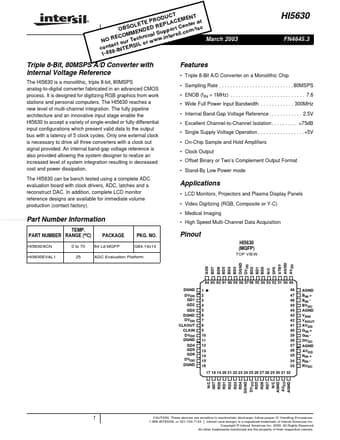

Preview of HI5630 PDF

Datasheet Details

Part number:

HI5630

Manufacturer:

Intersil Corporation

File Size:

698.70 KB

Description:

80msps a/d converter.
® CT T O D U C EM EN t R P E A ra T L e E P t en OL RE C S D t B r E O /tsc o D MEN cal Supp ersil.com M O t R EC c hn i w.in Data Sheet March 2003 N.
