HI5662 Datasheet - Intersil Corporation

HI5662 - 60MSPS A/D Converter

PIN NO.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 NAME AGND AVCC2 ID7 ID6 ID5 ID4 ID3 DVCC3 DGND ID2 ID1 ID0 NC NC DGND DVCC1 CLK DVCC2 DGND NC NC QD0 QD1 DESCRIPTION Analog Ground Analog Supply (+5.0V) I-Channel, Data Bit 7 Output (MSB) I-Channel, Data Bit 6 Output I-Channel, Dat

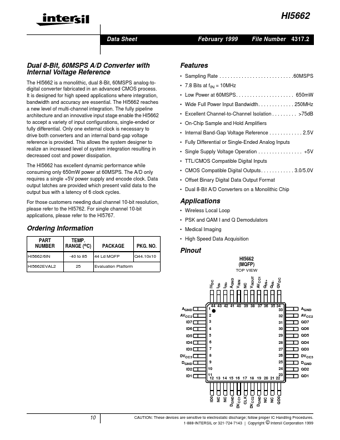

HI5662 Data Sheet February 1999 File Number 4317.2 Dual 8-Bit, 60MSPS A/D Converter with Internal Voltage Reference The HI5662 is a monolithic, dual 8-Bit, 60MSPS analog-todigital converter fabricated in an advanced CMOS process.

It is designed for high speed applications where integration, bandwidth and accuracy are essential.

The HI5662 reaches a new level of multi-channel integration.

The fully pipeline architecture and an innovative input stage enable the HI5662 to accept a variety of input
