HI5660 Datasheet - Intersil Corporation

HI5660 High Speed D/A Converter

® HI5660 Data Sheet July 2004 FN4521.7 8-Bit, 125/60MSPS, High Speed D/A Converter The HI5660 is an 8-bit, 125MSPS, high speed, low power, D/A converter which is implemented in an advanced CMOS process. Operating from a single +3V to +5V supply, the converter provides 20mA of full scale output current and includes edge-triggered CMOS input data latches. Low glitch energy and excellent frequency domain performance are achieved using a segmented current source architecture. For an equivalent per.

HI5660 Datasheet (569.43 KB)

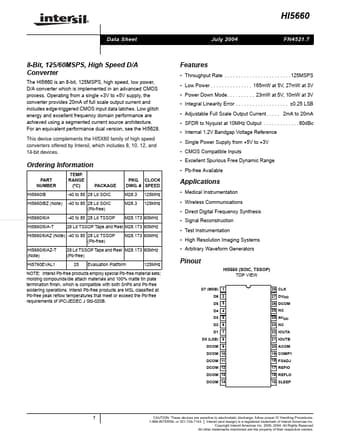

Preview of HI5660 PDF

Datasheet Details

Part number:

HI5660

Manufacturer:

Intersil Corporation

File Size:

569.43 KB

Description:

High speed d/a converter.
