HS7-2510RH-Q - Radiation Hardened High Slew Rate Operational Amplifier

Datasheet Summary

Description

only.

Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice.

Accordingly, the reader is cautioned to verify that data sheets are current before placing orders.

Features

  • Electrically Screened to SMD # 5962-95686.
  • QML Qualified per MIL-PRF-38535 Requirements.
  • High Slew Rate.
  • . . 50V/µs (Min), 65V/µs (Typ).
  • Wide Power Bandwidth.
  • . 750kHz (Min).
  • Low Offset Current.
  • . . 25nA (Min), 10nA (Typ).
  • High Input Impedance.
  • . . 50MΩ (Min), 100MΩ (Typ).
  • Wide Small Signal Bandwidth.
  • . .12MHz (Typ).
  • Fast Settling Time (0.1%.

📥 Download Datasheet

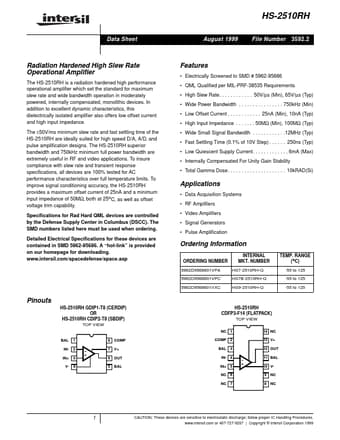

Datasheet preview – HS7-2510RH-Q

Datasheet Details

Part number HS7-2510RH-Q
Manufacturer Intersil Corporation
File Size 86.22 KB
Description Radiation Hardened High Slew Rate Operational Amplifier
Datasheet download datasheet HS7-2510RH-Q Datasheet
Additional preview pages of the HS7-2510RH-Q datasheet.

📁 Similar Datasheet

  • HS7043ECH61H - SH7043 Series FP-144 User System Interface Cable (Hitachi Semiconductor)
  • HS7067 - (HS7107 / HS7067) 7 AMP / MULTIMODE / HIGH EFFICIENCY SWITCHING REGULATOR (National Semiconductor)
  • HS70N06PA - N-CHANNEL MOSFET (HS)
  • HS7107 - (HS7107 / HS7067) 7 AMP / MULTIMODE / HIGH EFFICIENCY SWITCHING REGULATOR (National Semiconductor)
  • HS7202E - Header Connector (Foxconn)
  • HS7203E - Header Connector (Foxconn)
  • HS7204E - Header Connector (Foxconn)
  • HS7205E - Header Connector (Foxconn)
  • HS7206E - Header Connector (Foxconn)
  • HS7207E - Header Connector (Foxconn)
Other Datasheets by Intersil Corporation
  • HS7-2520RH-Q - Radiation Hardened Uncompensated/ High Slew Rate Operational Amplifier
  • HS7-2600RH-Q - Radiation Hardened Wideband/ High Impedance Operational Amplifier
  • HS7-2620RH-Q - Radiation Hardened/ Very Wideband/ High Input Impedance Uncompensated Operational Amplifiers
  • HS7-2622RH-Q - Radiation Hardened/ Very Wideband/ High Input Impedance Uncompensated Operational Amplifiers
  • HS7-1100RH-Q - Radiation Hardened/ Ultra High Speed Current Feedback Amplifier
  • HS7-1135RH-Q - Radiation Hardened/ High Speed/ Low Power Current Feedback Amplifier with Programmable Output Limiting
  • HS7-1135RHPROTO - Radiation Hardened/ High Speed/ Low Power Current Feedback Amplifier with Programmable Output Limiting
  • HS7-1145RH-Q - Radiation Hardened/ High Speed/ Low Power/ Current Feedback Video Operational Amplifier with Output Disable

Full PDF Text Transcription

Click to expand full text
HS-2510RH Data Sheet August 1999 File Number 3592.2 Radiation Hardened High Slew Rate Operational Amplifier The HS-2510RH is a radiation hardened high performance operational amplifier which set the standard for maximum slew rate and wide bandwidth operation in moderately powered, internally compensated, monolithic devices. In addition to excellent dynamic characteristics, this dielectrically isolated amplifier also offers low offset current and high input impedance. The ±50V/ms minimum slew rate and fast settling time of the HS-2510RH are ideally suited for high speed D/A, A/D, and pulse amplification designs. The HS-2510RH superior bandwidth and 750kHz minimum full power bandwidth are extremely useful in RF and video applications.
