HS7-2520RH-Q - Radiation Hardened Uncompensated/ High Slew Rate Operational Amplifier

Datasheet Summary

Description

only.

Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice.

Accordingly, the reader is cautioned to verify that data sheets are current before placing orders.

Features

  • Electrically Screened to SMD # 5962-95685.
  • QML Qualified per MIL-PRF-38535 Requirements.
  • High Slew Rate.
  • . .100V/µs Min, 120V/µs (Typ).
  • Wide Power Bandwidth.
  • . 1.5MHz (Min).
  • Wide Gain Bandwidth.
  • . . 10MHz Min, 20MHz (Typ).
  • High Input Impedance.
  • . . . 50MΩ Min, 100MΩ (Typ).
  • Low Offset Current.
  • . . . 25nA Min, 10nA (Typ).
  • Fast Settling (0.1% of 10V Step.

📥 Download Datasheet

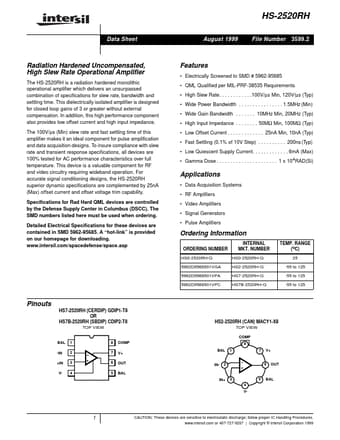

Datasheet preview – HS7-2520RH-Q
