HS7-2600RH-Q - Radiation Hardened Wideband/ High Impedance Operational Amplifier

Datasheet Summary

Description

only.

Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice.

Accordingly, the reader is cautioned to verify that data sheets are current before placing orders.

Features

very high input impedance coupled with wideband AC performance. The high resistance of the input stage is complemented by low offset voltage (4mVmax at 25oC for HS-2600RH) and low bias and offset current (10nA max at 25oC for HS-2600RH) to facilitate accurate signal processing. Offset voltage can be reduced further by means of an external nulling potentiometer. The 4V/µs minimum slew rate at 25oC and the minimum open loop gain of 100kV/V at 25oC enables the HS-2600RH to perform high gain ampliﬁc.

Intersil Corporation

📥 Download Datasheet

Datasheet Details

Part number	HS7-2600RH-Q
Manufacturer	Intersil Corporation
File Size	87.73 KB
Description	Radiation Hardened Wideband/ High Impedance Operational Amplifier
Datasheet	HS7-2600RH-Q Datasheet
Additional preview pages of the HS7-2600RH-Q datasheet.

📁 Similar Datasheet

HS7043ECH61H - SH7043 Series FP-144 User System Interface Cable (Hitachi Semiconductor)
HS7067 - (HS7107 / HS7067) 7 AMP / MULTIMODE / HIGH EFFICIENCY SWITCHING REGULATOR (National Semiconductor)
HS70N06PA - N-CHANNEL MOSFET (HS)
HS7107 - (HS7107 / HS7067) 7 AMP / MULTIMODE / HIGH EFFICIENCY SWITCHING REGULATOR (National Semiconductor)
HS7202E - Header Connector (Foxconn)
HS7203E - Header Connector (Foxconn)
HS7204E - Header Connector (Foxconn)
HS7205E - Header Connector (Foxconn)
HS7206E - Header Connector (Foxconn)
HS7207E - Header Connector (Foxconn)

Other Datasheets by Intersil Corporation

HS7-2620RH-Q - Radiation Hardened/ Very Wideband/ High Input Impedance Uncompensated Operational Amplifiers
HS7-2622RH-Q - Radiation Hardened/ Very Wideband/ High Input Impedance Uncompensated Operational Amplifiers
HS7-2510RH-Q - Radiation Hardened High Slew Rate Operational Amplifier
HS7-2520RH-Q - Radiation Hardened Uncompensated/ High Slew Rate Operational Amplifier
HS7-1100RH-Q - Radiation Hardened/ Ultra High Speed Current Feedback Amplifier
HS7-1135RH-Q - Radiation Hardened/ High Speed/ Low Power Current Feedback Amplifier with Programmable Output Limiting
HS7-1135RHPROTO - Radiation Hardened/ High Speed/ Low Power Current Feedback Amplifier with Programmable Output Limiting
HS7-1145RH-Q - Radiation Hardened/ High Speed/ Low Power/ Current Feedback Video Operational Amplifier with Output Disable

Full PDF Text Transcription

Click to expand full text

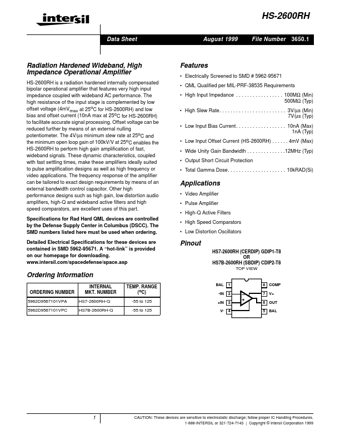

HS-2600RH Data Sheet August 1999 File Number 3650.1 Radiation Hardened Wideband, High Impedance Operational Ampliﬁer HS-2600RH is a radiation hardened internally compensated bipolar operational ampliﬁer that features very high input impedance coupled with wideband AC performance. The high resistance of the input stage is complemented by low offset voltage (4mVmax at 25oC for HS-2600RH) and low bias and offset current (10nA max at 25oC for HS-2600RH) to facilitate accurate signal processing. Offset voltage can be reduced further by means of an external nulling potentiometer. The 4V/µs minimum slew rate at 25oC and the minimum open loop gain of 100kV/V at 25oC enables the HS-2600RH to perform high gain ampliﬁcation of fast, wideband signals.
