HS7-1100RH-Q - Radiation Hardened/ Ultra High Speed Current Feedback Amplifier

Datasheet Summary

Features

  • Electrically Screened to SMD # 5962-94676.
  • QML Qualified per MIL-PRF-38535 Requirements.
  • Low Distortion (HD3, 30MHz).
  • . . -84dBc (Typ).
  • Wide -3dB Bandwidth.
  • . . 850MHz (Typ).
  • Very High Slew Rate.
  • . 2300V/µs (Typ).
  • Fast Settling (0.1%).
  • . 11ns (Typ).
  • Excellent Gain Flatness (to 50MHz).
  • . . 0.05dB (Typ).
  • High Output Cur.

📥 Download Datasheet

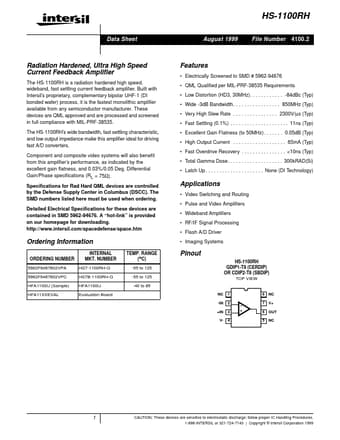

Datasheet preview – HS7-1100RH-Q

Datasheet Details

Part number HS7-1100RH-Q
Manufacturer Intersil Corporation
File Size 132.49 KB
Description Radiation Hardened/ Ultra High Speed Current Feedback Amplifier
Datasheet download datasheet HS7-1100RH-Q Datasheet
Additional preview pages of the HS7-1100RH-Q datasheet.
