HS7-1135RHPROTO - Radiation Hardened/ High Speed/ Low Power Current Feedback Amplifier with Programmable Output Limiting

Datasheet Summary

Description

applies to the symmetrical low clamp circuitry controlled by VL.

When the output is clamped, the negative input continues to source a slewing current (ICLAMP) in an attempt to force the output to the quiescent voltage defined by the input.

Features

  • user programmable output limiting, via the VH and VL pins. The HS-1135RH is the ideal choice for high speed, low power.

📥 Download Datasheet

Datasheet preview – HS7-1135RHPROTO

Datasheet Details

Part number HS7-1135RHPROTO
Manufacturer Intersil Corporation
File Size 63.00 KB
Description Radiation Hardened/ High Speed/ Low Power Current Feedback Amplifier with Programmable Output Limiting
Datasheet download datasheet HS7-1135RHPROTO Datasheet
Additional preview pages of the HS7-1135RHPROTO datasheet.

📁 Similar Datasheet

  • HS7043ECH61H - SH7043 Series FP-144 User System Interface Cable (Hitachi Semiconductor)
  • HS7067 - (HS7107 / HS7067) 7 AMP / MULTIMODE / HIGH EFFICIENCY SWITCHING REGULATOR (National Semiconductor)
  • HS70N06PA - N-CHANNEL MOSFET (HS)
  • HS7107 - (HS7107 / HS7067) 7 AMP / MULTIMODE / HIGH EFFICIENCY SWITCHING REGULATOR (National Semiconductor)
  • HS7202E - Header Connector (Foxconn)
  • HS7203E - Header Connector (Foxconn)
  • HS7204E - Header Connector (Foxconn)
  • HS7205E - Header Connector (Foxconn)
  • HS7206E - Header Connector (Foxconn)
  • HS7207E - Header Connector (Foxconn)
Other Datasheets by Intersil Corporation
  • HS7-1135RH-Q - Radiation Hardened/ High Speed/ Low Power Current Feedback Amplifier with Programmable Output Limiting
  • HS7-1100RH-Q - Radiation Hardened/ Ultra High Speed Current Feedback Amplifier
  • HS7-1145RH-Q - Radiation Hardened/ High Speed/ Low Power/ Current Feedback Video Operational Amplifier with Output Disable
  • HS7-1212RH-Q - Radiation Hardened/ Dual/ High Speed Low Power/ Video Closed Loop Buffer
  • HS7-2510RH-Q - Radiation Hardened High Slew Rate Operational Amplifier
  • HS7-2520RH-Q - Radiation Hardened Uncompensated/ High Slew Rate Operational Amplifier
  • HS7-2600RH-Q - Radiation Hardened Wideband/ High Impedance Operational Amplifier
  • HS7-2620RH-Q - Radiation Hardened/ Very Wideband/ High Input Impedance Uncompensated Operational Amplifiers

Full PDF Text Transcription

Click to expand full text

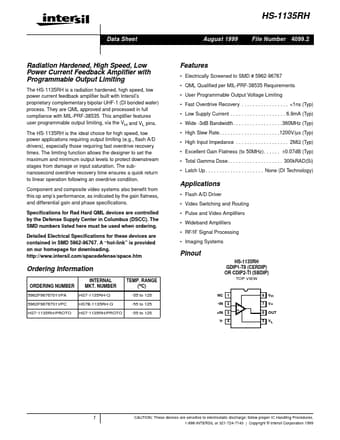

HS-1135RH Data Sheet August 1999 File Number 4099.2 Radiation Hardened, High Speed, Low Power Current Feedback Amplifier with Programmable Output Limiting The HS-1135RH is a radiation hardened, high speed, low power current feedback amplifier built with Intersil’s proprietary complementary bipolar UHF-1 (DI bonded wafer) process. They are QML approved and processed in full compliance with MIL-PRF-38535. This amplifier features user programmable output limiting, via the VH and VL pins. The HS-1135RH is the ideal choice for high speed, low power applications requiring output limiting (e.g., flash A/D drivers), especially those requiring fast overdrive recovery times.
