HS7-1212RH-Q Datasheet - Intersil Corporation

HS7-1212RH-Q Radiation Hardened/ Dual/ High Speed Low Power/ Video Closed Loop Buffer

HS-1212RH Data Sheet August 1999 File Number 4228.1 Radiation Hardened, Dual, High Speed Low Power, Video Closed Loop Buffer The HS-1212RH is a dual closed loop buffer featuring user programmable gain and high speed performance. Manufactured on Intersil’s proprietary complementary bipolar UHF-1 (DI bonded wafer) process, this device offers wide -3dB bandwidth of 340MHz, very fast slew rate, excellent gain ﬂatness and high output current. These devices are QML approved and are processed and scre.

HS7-1212RH-Q Features

* Electrically Screened to SMD # 5962-96831

* QML Qualiﬁed per MIL-PRF-38535 Requirements

* MIL-PRF-38535 Class V Compliant

* User Programmable For Closed-Loop Gains of +1, -1 or +2 Without Use of External Resistors

* Standard Operational Ampliﬁer Pinout

HS7-1212RH-Q Datasheet (107.21 KB)

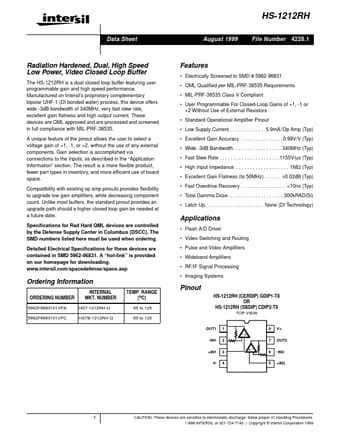

HS7-1212RH-Q Datasheet Preview — Preview of HS7-1212RH-Q PDF

Datasheet Details

Part number:

HS7-1212RH-Q

Manufacturer:

Intersil Corporation

File Size:

107.21 KB

Description:

Radiation hardened/ dual/ high speed low power/ video closed loop buffer.
