HS9-26C32RH

Radiation Hardened Quad Differential Line Receiver

HS9-26C32RH Features

* 1.2 Micron Radiation Hardened CMOS - Total Dose Up to 300K RAD (Si)

* Latchup Free

* EIA RS-422 Compatible Outputs

* CMOS Compatible Inputs

* Input Fail Safe Circuitry

* High Impedance Inputs when Disabled or Powered Down

* Low Power Dissipat

HS9-26C32RH General Description

The Intersil HS-26C32RH is a differential line receiver designed for digital data transmission over balanced lines and meets the requirements of EIA standard RS-422. Radiation hardened CMOS processing assures low power consumption, high speed, and reliable operation in the most severe radiation envi.

HS9-26C32RH Datasheet (67.45 KB)

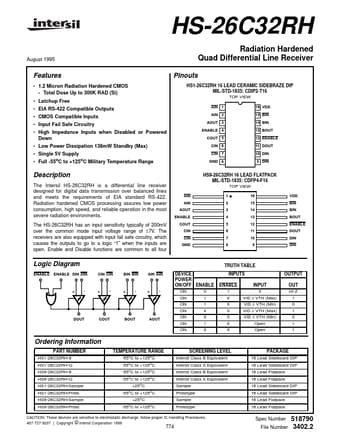

Preview of HS9-26C32RH PDF

Datasheet Details

Part number:

HS9-26C32RH

Manufacturer:

Intersil Corporation

File Size:

67.45 KB

Description:

Radiation hardened quad differential line receiver.
HS-26C32RH August 1995 Radiation Hardened Quad Differential Line Receiver Pinouts HS1-26C32RH 16 LEAD CERAMIC SIDEBRAZE DIP MIL-STD-1835: CDIP2-T16 T.
