HS9-26C32RH-Q Radiation Hardened Quad Differential Line Receiver

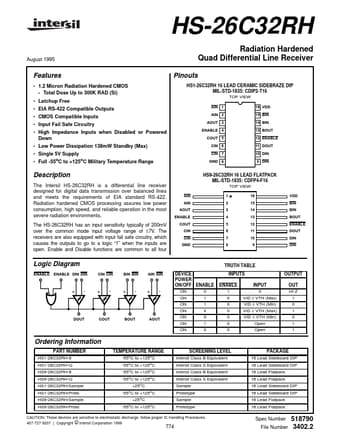

📥 Download Datasheet  Datasheet Preview Page 1

Description

HS-26C32RH August 1995 Radiation Hardened Quad Differential Line Receiver Pinouts HS1-26C32RH 16 LEAD CERAMIC SIDEBRAZE DIP MIL-STD-1835: CDIP2-T16 T.
The Intersil HS-26C32RH is a differential line receiver designed for digital data transmission over balanced lines and meets the requirements of EIA s.

📥 Download Datasheet

Preview of HS9-26C32RH-Q PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
HS9-26C32RH-Q
Manufacturer
Intersil Corporation
File Size
67.45 KB
Datasheet
HS9-26C32RH-Q_IntersilCorporation.pdf
Description
Radiation Hardened Quad Differential Line Receiver

Features

* 1.2 Micron Radiation Hardened CMOS - Total Dose Up to 300K RAD (Si)
* Latchup Free
* EIA RS-422 Compatible Outputs
* CMOS Compatible Inputs
* Input Fail Safe Circuitry
* High Impedance Inputs when Disabled or Powered Down
* Low Power Dissipat
