HUF75333G3 N-Channel MOSFET

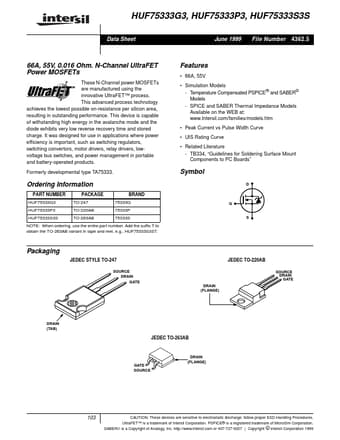

HUF75333G3, HUF75333P3, HUF75333S3S Data Sheet June 1999 File Number 4362.5 66A, 55V, 0.016 Ohm. N-Channel UltraFET Power MOSFETs These N-Channel power MOSFETs are manufactured using the innovative UltraFET™ process. This advanced process technology achieves the lowest possible on-resistance per silicon area, resulting in outstanding performance. This device is capable of withstanding high energy in the avalanche mode and the diode exhibits very low reverse recovery time and stored charge. It w.

HUF75333G3 Features

* 66A, 55V

* Simulation Models - Temperature Compensated PSPICE® and SABER© Models - SPICE and SABER Thermal Impedance Models Available on the WEB at: www.Intersil.com/families/models.htm

* Peak Current vs Pulse Width Curve

* UIS Rating Curve

* Related Literat

HUF75333G3 Datasheet (108.43 KB)
