IRF440 N-Channel Power MOSFET

IRF440 Data Sheet March 1999 File Number 2308.3 8A, 500V, 0.850 Ohm, N-Channel Power MOSFET This N-Channel enhancement mode silicon gate power ﬁeld effect transistor is an advanced power MOSFET designed, tested, and guaranteed to withstand a speciﬁed level of energy in the breakdown avalanche mode of operation. All of these power MOSFETs are designed for applications such as switching regulators, switching convertors, motor drivers, relay drivers, and drivers for high power bipolar switching tr.

IRF440 Features

* 8A, 500V

* rDS(ON) = 0.850Ω

* Single Pulse Avalanche Energy Rated

* SOA is Power-Dissipation Limited

* Nanosecond Switching Speeds

* Linear Transfer Characteristics

* High Input Impedance

* Majority Carrier Device

* Related Li

IRF440_IntersilCorporation.pdf

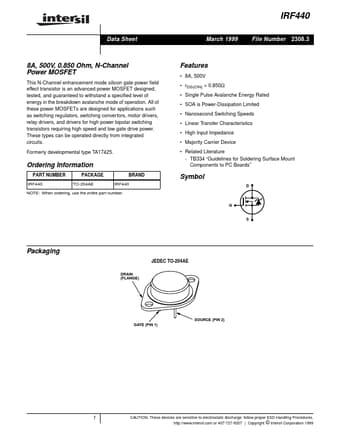

IRF440 Datasheet Preview — Preview of IRF440 PDF

Datasheet Details

Part number:

IRF440

Manufacturer:

Intersil Corporation

File Size:

55.89 KB

Description:

N-channel power mosfet.
