IRF9620 P-Channel Power MOSFET

IRF9620 Data Sheet July 1999 File Number 2283.2 3.5A, 200V, 1.500 Ohm, P-Channel Power MOSFET This P-Channel enhancement mode silicon gate power ﬁeld effect transistor is an advanced power MOSFET designed, tested and guaranteed to withstand a speciﬁed level of energy in the breakdown avalanche mode of operation. All of these power MOSFETs are designed for applications such as switching regulators, switching convertors, motor drivers, relay drivers, and drivers for high power bipolar switching t.

IRF9620 Features

* 3.5A, 200V

* rDS(ON) = 1.500Ω

* Single Pulse Avalanche Energy Rated

* SOA is Power Dissipation Limited

* Nanosecond Switching Speeds

* Linear Transfer Characteristics

* High Input Impedance Symbol D Ordering Information PART NUMBER IRF9620

IRF9620 Datasheet (58.57 KB)

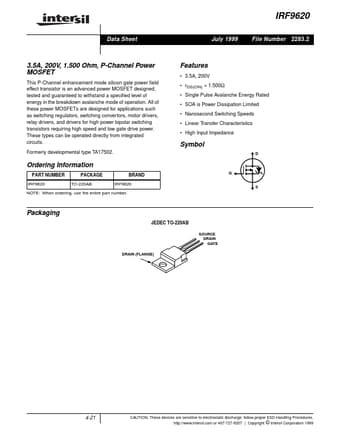

IRF9620 Datasheet Preview — Preview of IRF9620 PDF

Datasheet Details

Part number:

IRF9620

Manufacturer:

Intersil Corporation

File Size:

58.57 KB

Description:

P-channel power mosfet.
