IRFF120

N-Channel Power MOSFET

Intersil Corporation

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	NJ SEMI	IRFF120		Bristol Electronics	915	186 units	$15.74	🛒 Buy Now

Download Datasheet (325.85 KB)

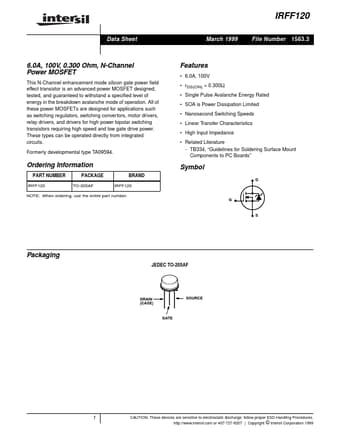

IRFF120 Datasheet Preview — Preview of IRFF120 Datasheet

Datasheet Details

Part number:

IRFF120

Manufacturer:

Intersil Corporation

File Size:

325.85 KB

Description:

N-channel power mosfet.
IRFF120 Data Sheet March 1999 File Number 1563.3 6.0A, 100V, 0.300 Ohm, N-Channel Power MOSFET This.
N-Channel enhancement mode silicon gate power ﬁeld effect transistor is an advanced power MOSFET de.

✔ IRFF120 Features

6.0A, 100V
rDS(ON) = 0.300Ω
Single Pulse Avalanche Energy Rated
SOA is Power Dissipation Limited
Nanosecond Switching Speeds
Linear Transfer Characteristics

✔ IRFF120 Application

such as switching regulators, switching convertors, motor drivers, relay drivers, and drivers for high power
