ISL5827

High Speed D/A Converter

ISL5827 Features

* Low Power . . . . . 233mW with 20mA Output at 130MSPS

* Adjustable Full Scale Output Current . . . . . 2mA to 20mA

* Guaranteed Gain Matching < 0.14dB

* +3.3V Power Supply

* 3V LVCMOS Compatible Inputs

* Excellent Spurious Free Dynamic Range (73dBc t

ISL5827 General Description

PIN NAME AGND AVDD CLK DGND DVDD FSADJ NC ICOMP, QCOMP Analog ground. Analog supply (+2.7V to +3.6V). Clock input. Connect to digital ground. Digital supply (+2.7V to +3.6V). Full scale current adjust. Use a resistor to ground to adjust full scale output current. Full scale output current = 32 x VF.

ISL5827 Datasheet (704.07 KB)

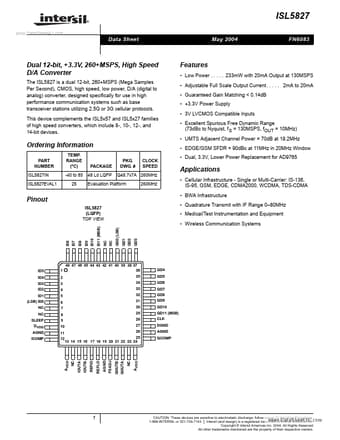

Preview of ISL5827 PDF

Datasheet Details

Part number:

ISL5827

Manufacturer:

Intersil Corporation

File Size:

704.07 KB

Description:

High speed d/a converter.
® ISL5827 Data Sheet May 2004 FN6083 www.DataSheet4U.com Dual 12-bit, +3.3V, 260+MSPS, High Speed D/A Converter The ISL5827 is a dual 12-bit, 260+M.
