ISL5857 - High Speed D/A Converter

ISL5857 Description

DATASHEET ISL5857 12-bit, +3.3V, 260+MSPS, High Speed D/A Converter FN6079 Rev 3.00 October 7, 2015 The ISL5857 is a 12-bit, 260+MSPS (Mega Samples.

ISL5857 Features

* Low power
* . . . 103mW with 20mA output at 130MSPS
* Adjustable full scale output current
* . . . . 2mA to 20mA
* +3.3V power supply
* 3V LVCMOS compatible inputs
* Excellent spurious free dynamic

ISL5857 Applications

* Cellular Infrastructure - single or multicarrier: IS-136, IS-95, GSM, EDGE, CDMA2000, WCDMA, TDS-CDMA
* BWA infrastructure
* Medical/test instrumentation
* Wireless communication systems
* High resolution imaging systems
* Arbitrary waveform generato

📥 Download Datasheet

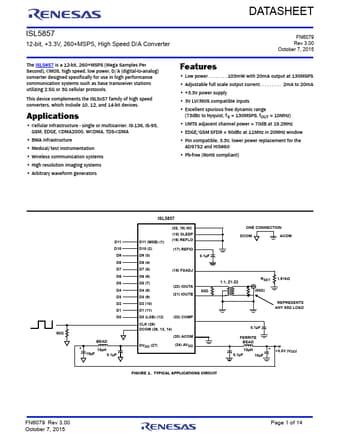

Preview of ISL5857 PDF
datasheet Preview Page 2 datasheet Preview Page 3
