ISL58315

High Speed Triple Laser Diode Drivers

ISL58315 Features

* High-speed, triple-output laser diode driver supporting up to 720-pixel HD resolution Each output channel provides laser-independent current

* Up to 1A of peak current output control for threshold and color DACs. Separate scale DACs allow independent scaling of both threshold an

ISL58315 General Description

PIN NAME PIN # PIN TYPE PIN DESCRIPTION CE 22 Digital CE is an input 3.3V logic signal. When high, it enables the device. Other enables are in the registers. LOWP 37 Digital LOWP is a 3.3V signal. When LOWP is asserted (high), the device goes into low-power mode. RTZ 39 Digital RTZ signal ca.

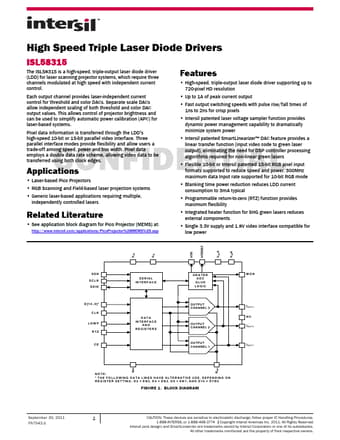

ISL58315 Datasheet (885.36 KB)

Preview of ISL58315 PDF

Datasheet Details

Part number:

ISL58315

Manufacturer:

Intersil Corporation

File Size:

885.36 KB

Description:

High speed triple laser diode drivers.
High Speed Triple Laser Diode Drivers ISL58315 The ISL58315 is a high-speed, triple-output laser diode driver (LDD) for laser scanning projector sys.
