ISL7457SRH Datasheet, Driver, Intersil Corporation

ISL7457SRH Features

  • Driver 2A typical peak drive capability and a nominal ON-resistance of just 3.5Ω. The ISL7457SRH is ideal for driving highly capacitive loads, such as storage and vertical clocks in CCD applic

PDF File Details

Part number:

ISL7457SRH

Manufacturer:

Intersil Corporation

File Size:

558.07kb

Download:

📄 Datasheet

Description:

Quad cmos driver. (RoHS Compliant) Pkg. Dwg. # Carrier Type Temp. Range 5962D0823001QXC ISL7457SRHQF 16 Ld Flatpack K16.A Tray -55 to +125°C

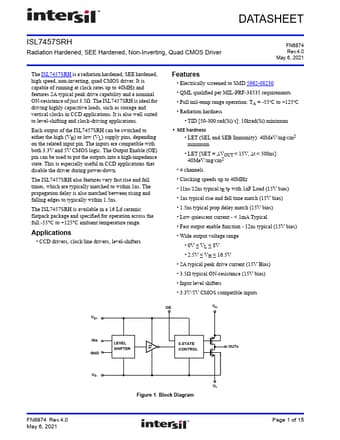

Datasheet Preview: ISL7457SRH 📥 Download PDF (558.07kb)
Page 2 of ISL7457SRH Page 3 of ISL7457SRH

ISL7457SRH Application

  • Applications It is also well suited to level-shifting and clock-driving applications. Each output of the ISL7457SRH can be switched to either the h
