ISL74422ARH Datasheet - Intersil Corporation

ISL74422ARH Non-Inverting Power MOSFET Drivers

DATASHEET ISL74422ARH Radiation Hardened 9A, Non-Inverting Power MOSFET Drivers FN9031 Rev 2.00 April 1, 2010 The Radiation Hardened ISL74422ARH is a noninverting, monolithic high-speed MOSFET driver designed to convert a CMOS level input signal into a high current output at voltages up to 18V. Its fast rise times and high current output allow very quick control of even the largest power MOSFETs in high frequency applications. The input of the ISL74422ARH can be directly driven by our HS-1825.

ISL74422ARH_IntersilCorporation.pdf

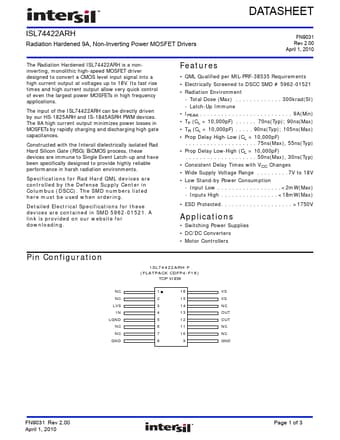

Preview of ISL74422ARH PDF
ISL74422ARH Datasheet Preview Page 2 ISL74422ARH Datasheet Preview Page 3

Datasheet Details

Part number:

ISL74422ARH

Manufacturer:

Intersil Corporation

File Size:

118.32 KB

Description:

Non-inverting power mosfet drivers.
