ISL74422BRH Datasheet - Intersil Corporation

ISL74422BRH Non-Inverting Power MOSFET Driver

DATASHEET ISL74422BRH Radiation Hardened, 9A, Non-Inverting Power MOSFET Driver FN6057 Rev 0.00 October 2003 The radiation hardened ISL74422BRH is a non-inverting, monolithic high-speed MOSFET driver designed to convert a 5V CMOS logic input signal into a high current output at voltages up to 18V. Its fast rise/fall times and high current output allow very quick control of even the largest power MOSFETs in high frequency applications. The input of the ISL74422BRH can be directly driven by our.

ISL74422BRH_IntersilCorporation.pdf

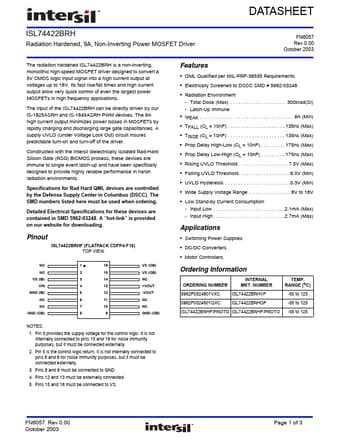

Preview of ISL74422BRH PDF
ISL74422BRH Datasheet Preview Page 2 ISL74422BRH Datasheet Preview Page 3

Datasheet Details

Part number:

ISL74422BRH

Manufacturer:

Intersil Corporation

File Size:

187.99 KB

Description:

Non-inverting power mosfet driver.
