ISL74420M

Radiation Tolerant Quad Clock Fanout

Intersil

ISL74420M Features

* ▪ Qualified to Renesas Rad Tolerant Screening and QCI Flow (R34TB0004EU) ▪ PVIN supply range 3V to 18V

* Independent clock output supply 3V to 5.5V ▪ Programmable output frequency starting at 25kHz

* Internal or external clock source ▪ Programmable phase delay as low as 15° increment

ISL74420M General Description

The ISL74420M is a radiation tolerant quad output clock fanout IC with an optional internal oscillator. It provides synchronization clocks for any application and is particularly useful in multiphase power converters. Each of the four outputs can be set to a different frequency division and phase de.

ISL74420M Datasheet (1.20 MB)

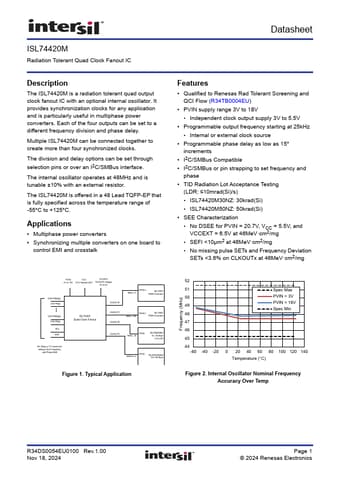

ISL74420M Datasheet Preview — Preview of ISL74420M PDF

Datasheet Details

Part number:

ISL74420M

Manufacturer:

Intersil

File Size:

1.20 MB

Description:

Radiation tolerant quad clock fanout.
