Description

RFP14N06 Data Sheet July 1999 File Number 4002.3 14A, 60V, 0.100 Ohm, N-Channel Power MOSFET This N-Channel power MOSFET is manufactured using the Me.

📥 Download Datasheet

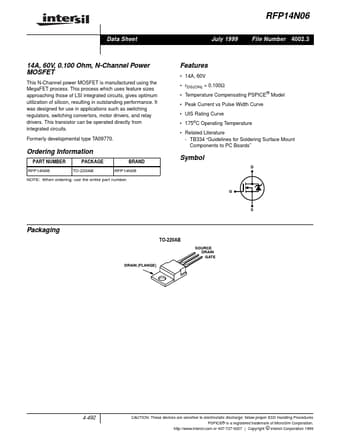

Preview of RFP14N06 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RFP14N06
Manufacturer
Intersil Corporation
File Size
75.05 KB
Datasheet
RFP14N06_IntersilCorporation.pdf
Description
N-Channel Power MOSFET

Features

* 14A, 60V
* rDS(ON) = 0.100Ω
* Temperature Compensating PSPICE® Model
* Peak Current vs Pulse Width Curve
* UIS Rating Curve
* 175oC Operating Temperature
* Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Bo
