RFP14N06L N-Channel Power MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

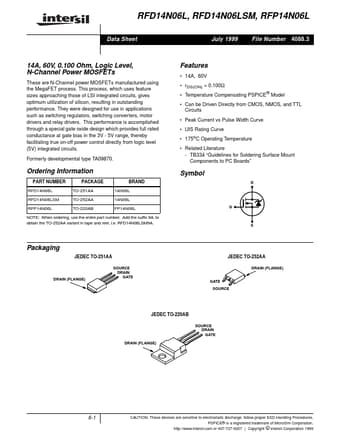

RFD14N06L, RFD14N06LSM, RFP14N06L Data Sheet July 1999 File Number 4088.3 14A, 60V, 0.100 Ohm, Logic Level, N-Channel Power MOSFETs These are N-Chann.

📥 Download Datasheet

Preview of RFP14N06L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RFP14N06L
Manufacturer
Intersil Corporation
File Size
83.46 KB
Datasheet
RFP14N06L_IntersilCorporation.pdf
Description
N-Channel Power MOSFET

Features

* 14A, 60V
* rDS(ON) = 0.100Ω
* Temperature Compensating PSPICE® Model
* Can be Driven Directly from CMOS, NMOS, and TTL Circuits
* Peak Current vs Pulse Width Curve
* UIS Rating Curve
* 175oC Operating Temperature
* Related Literature

Applications

* such as switching regulators, switching converters, motor drivers and relay drivers. This performance is accomplished through a special gate oxide design which provides full rated conductance at gate bias in the 3V - 5V range, thereby facilitating true on-off power control directly from logic level
