ISL71441M - Radiation Tolerant 12V Half-Bridge GaN FET Driver

Intersil

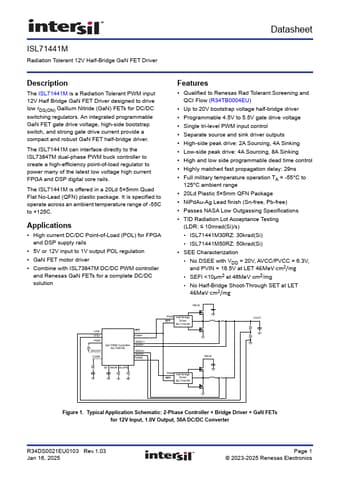

ISL71441M Datasheet Preview — Preview of ISL71441M PDF

Datasheet Details

Part number	ISL71441M
Manufacturer	Intersil
File Size	2.36 MB
Description	Radiation Tolerant 12V Half-Bridge GaN FET Driver
Datasheet	ISL71441M-Intersil.pdf

ISL71441M Product details

Description

The ISL71441M is a Radiation Tolerant PWM input 12V Half Bridge GaN FET Driver designed to drive low rDS(ON) Gallium Nitride (GaN) FETs for DC/DC switching regulators.

Features

Qualified to Renesas Rad Tolerant Screening and QCI Flow (R34TB0004EU).
Up to 20V bootstrap voltage half-bridge driver.
Programmable 4.5V to 5.5V gate drive voltage.
Single tri-level PWM input control.
Separate source and sink driver outputs.
High-side peak drive: 2A Sourcing, 4A Sinking.
Low-side peak drive: 4A Sourcing, 8A Sinking.
High and low side programmable dead time control.
Highly matched fast propagation delay: 29ns.
Full military temp.
