KBPC106, KBPC1005 3.0 AMPERE SINGLE-PHASE SILICON BRIDGE RECTIFIER

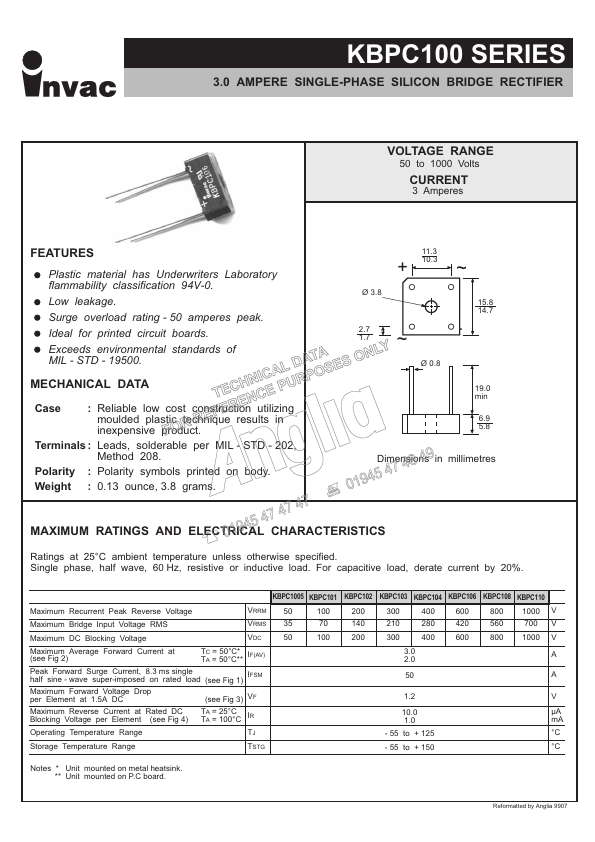

📥 Download Datasheet  Datasheet Preview Page 1

Description

KBPC100 SERIES 3.0 AMPERE SINGLE-PHASE SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 3 Amperes .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KBPC106, KBPC1005. Please refer to the document for exact specifications by model.

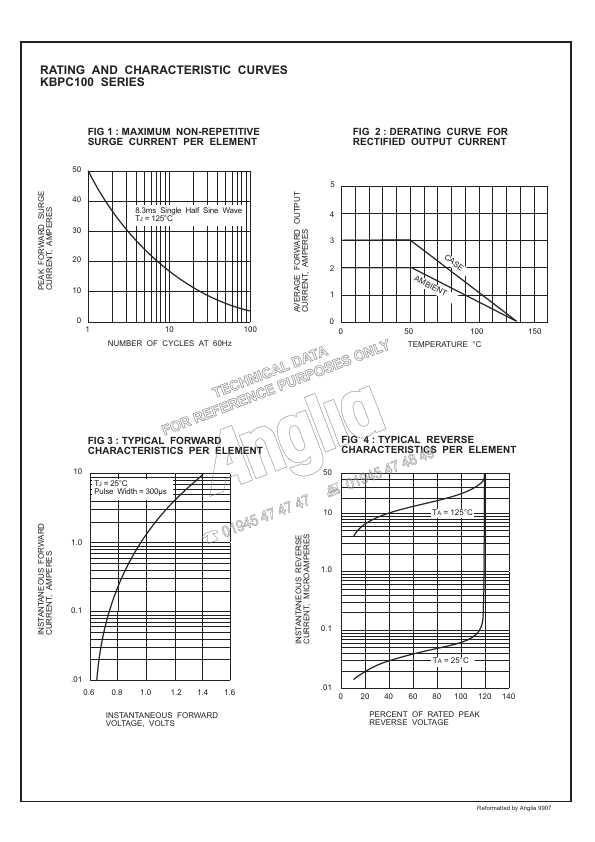

datasheet Preview Page 2

Datasheet Specifications

Part number
KBPC106, KBPC1005
Manufacturer
Invac
File Size
55.71 KB
Datasheet
KBPC1005-Invac.pdf
Description
3.0 AMPERE SINGLE-PHASE SILICON BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: KBPC106, KBPC1005.
Please refer to the document for exact specifications by model.

Features

* Plastic material has Underwriters Laboratory flammability classification 94V-0. Low leakage. Surge overload rating - 50 amperes peak. Ideal for printed circuit boards. Exceeds environmental standards of MIL - STD - 19500. MECHANICAL DATA Case : Reliable low cost construction utilizing : moulded p
