iT2001P - 1 to 20 GHz medium gain high-power amplifier

Datasheet Details

Part number	iT2001P
Manufacturer	Iterra
File Size	140.32 KB
Description	1 to 20 GHz medium gain high-power amplifier
Datasheet	iT2001P_Iterra.pdf

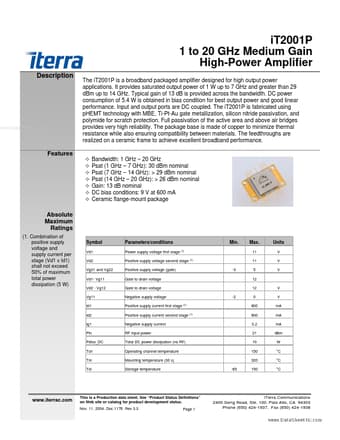

The iT2001P is a broadband packaged amplifier designed for high output power applications.

Bandwidth: 1 GHz.
20 GHz Psat (1 GHz.
7 GHz): 30 dBm nominal Psat (7 GHz.
14 GHz): > 29 dBm nominal Psat (14 GHz.
20 GHz): > 26 dBm nominal Gain: 13 dB nominal DC bias conditions: 9 V at 600 mA Ceramic flange-mount package Absolute Maximum Ratings (1. Combination of positive supply voltage and supply current per stage (Vd1 x Id1) shall not exceed 50% of maximum total power dissipation (5 W) Symbol Vd1 Vd2 Vg21 and Vg22 Vd1- Vg11 Vd2 - Vg12 Vg11 Id1 Id2 Ig1 P.
