iT2002

2 to 26.5 GHz dual-channel high-power amplifier

iT2002 Features

* (Power output is per channel) OUT1 CHANNEL 2 IN2 VGG2 VDD2 OUT2 Absolute Maximum Ratings (per channel) Symbol VDD1,2 VGG1,2 IDQ1,2 IG1,2 Pin Pdiss_DC Tch Tm Tst Parameters/conditions Positive supply voltage Negative supply voltage Positive supply current Negative supply current RF input power

iT2002 General Description

The iT2002 is dual-channel broadband GaAs MMIC traveling-wave amplifier designed for applications requiring high output power. The iT2002 provides a saturated output power of 1 W per channel up to 10 GHz and greater than 28.5 dBm up to 20 GHz. Medium gain of 10 dB with flatness of +/-1dB is provided.

iT2002 Datasheet (131.95 KB)

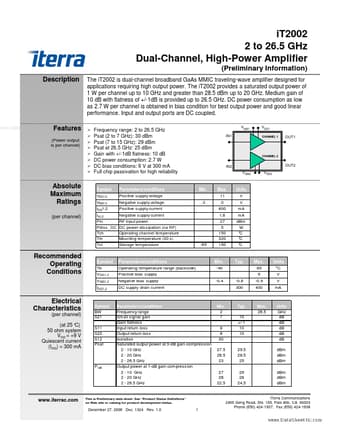

iT2002 Datasheet Preview — Preview of iT2002 PDF

Datasheet Details

Part number:

iT2002

Manufacturer:

Iterra

File Size:

131.95 KB

Description:

2 to 26.5 ghz dual-channel high-power amplifier.
