iT2005F - Power Amplifier

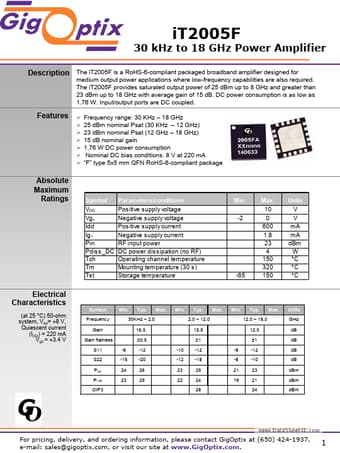

iT2005F Datasheet Preview — Preview of iT2005F PDF

Datasheet Details

Part number	iT2005F
Manufacturer	gigoptix
File Size	307.57 KB
Description	Power Amplifier
Datasheet	iT2005F_gigoptix.pdf

iT2005F Product details

Description

The iT2005F is a RoHS-6-compliant packaged broadband amplifier designed for medium output power applications where low-frequency capabilities are also required.The iT2005F provides saturated output power of 25 dBm up to 8 GHz and greater than 23 dBm up to 18 GHz with average gain of 15 dB.DC power consumption is as low as 1.76 W.Input/output ports are DC coupled.Frequency range: 30 KHz 18 GHz 25 dBm nominal Psat (30 KHz 12 GHz) 23 dBm nominal Psat (12 GHz 18 GHz

Features

www. DataSheet4U. com ¾ ¾ ¾ ¾ ¾ ¾ ¾ Absolute Maximum Ratings Symbol VDD Vg1 Idd Ig1 Pin Pdiss_DC Tch Tm Tst Parameters/conditions Positive supply voltage Negative supply voltage Positive supply current Negative supply current RF input power DC power dissipation (no RF) Operating channel temperature Mounting temperature (30 s) Storage temperature Min. -2 Max. 10 0 600 1.8 23 4 150 320 150 Units V V mA mA dBm W °C °C °C -65 Electrical Characteristics Symbol Min. Typ. Max. Min. Typ. 2.0.
