iT2007 - 10 MHz to 22 GHz high-power amplifier

Name: iT2007
SKU: iT2007-620166

📥 Download Datasheet

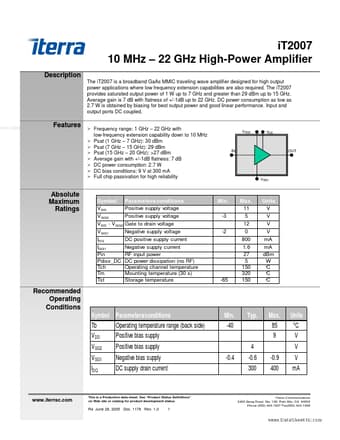

iT2007 Datasheet Preview — Preview of iT2007 PDF

Datasheet Details

Part number	iT2007
Manufacturer	Iterra
File Size	318.30 KB
Description	10 MHz to 22 GHz high-power amplifier
Datasheet	iT2007_Iterra.pdf

iT2007 Product details

Description

The iT2007 is a broadband GaAs MMIC traveling wave amplifier designed for high output power applications where low frequency extension capabilities are also required.

Features

Frequency range: 1 GHz.
22 GHz with low-frequency extension capability down to 10 MHz Psat (1 GHz.
7 GHz): 30 dBm Psat (7 GHz.
15 GHz): 29 dBm Psat (15 GHz.
20 GHz): >27 dBm Average gain with +/-1dB flatness: 7 dB DC power consumption: 2.7 W DC bias conditions: 9 V at 300 mA Full chip passivation for high reliability VGG2 VDD IN OUT VGG1 Absolute Maximum Ratings Symbol VDD VGG2 VGG1 IDQ IGG1 Pin Pdiss_DC Tch Tm Tst Parameters/conditions Positive suppl.
