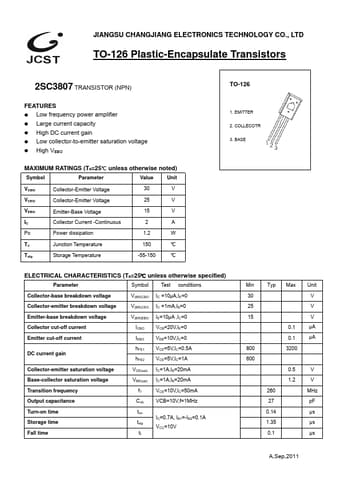

2SC3807 Datasheet, Transistor, JCET

2SC3807 Features

• Transistor z Low frequency power amplifier z Large current capacity z High DC current gain z Low collector-to-emitter saturation voltage z High VEBO MAXIMUM RATINGS (Ta=25℃ unless otherwise noted

PDF File Details

Part number:

2SC3807

Manufacturer:

JCET

File Size:

276.75kb

Download:

📄 Datasheet

Description:

Npn transistor.
