Part number:
2SD1815
Manufacturer:
JCET
File Size:
590.79 KB
Description:
Npn transistor.

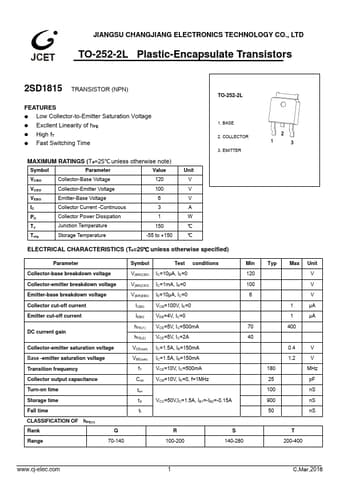

* z Low Collector-to-Emitter Saturation Voltage z Excllent Linearity of hFE z High fT z Fast Switching Time MAXIMUM RATINGS (Ta=25℃ unless otherwise note) Symbol Parameter Value VCBO Collector-Base Voltage 120 VCEO Collector-Emitter Voltage 100 VEBO Emitter-Base Voltage 6 IC Collector Cu
2SD1815
JCET
590.79 KB
Npn transistor.
