| Part number | GS3KB, GS3AB |
|---|---|
| Manufacturer | JIEJIE |
| File Size | 206.56 KB |
| Description | GENERAL PURPOSE RECTIFIER |
| Datasheet |
 GS3AB-JIEJIE.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: GS3KB, GS3AB. Please refer to the document for exact specifications by model. |

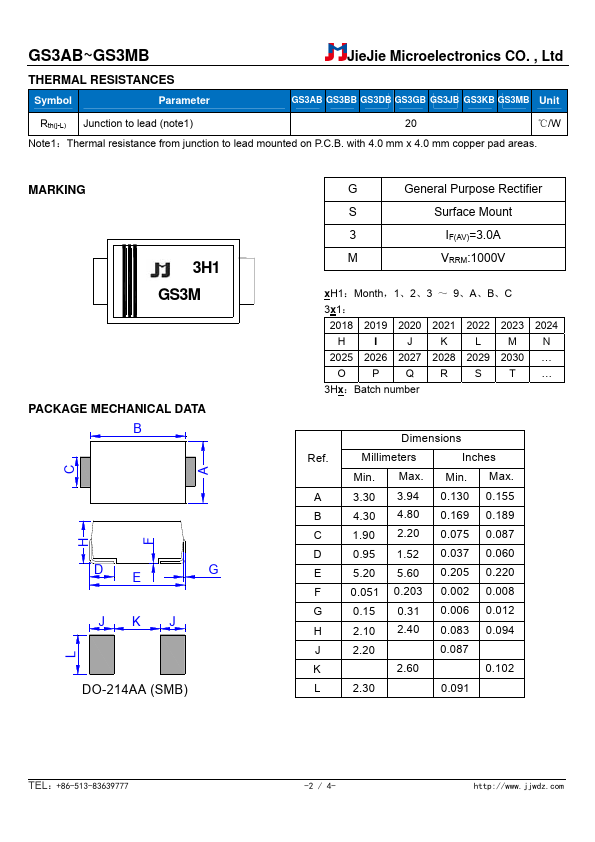

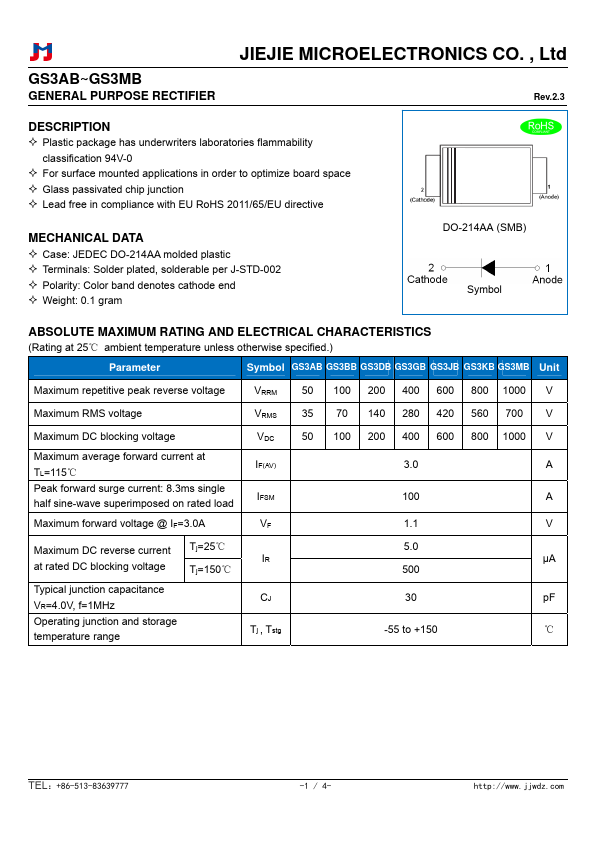

Plastic package has underwriters laboratories flammability classification 94V-0 For surface mounted applications in order to optimize board space Glass passivated chip junction Lead free in compliance with EU RoHS 2011/65/EU directive MECHANICAL DATA Case: JEDEC DO-214AA molded plastic Terminals: Solder plated, solderable per J-STD-002 Polarity: Color band denotes cathode end Weight: 0.1 gram DO-214AA (SMB) Symbol ABSOLUTE MAXIMUM RATING AND ELEC
