JMTP085P02A Datasheet, Mosfet, JIEJIE

JMTP085P02A Features

• Mosfet
• VDS=-20V, ID=-15A RDS(ON) <9mΩ @ VGS = -4.5V RDS(ON) <13mΩ @ VGS = -2.5V
• Advanced Trench Technology
• Excellent RDS(ON) and Low Gate Charge
• Lead fr

PDF File Details

Part number:

JMTP085P02A

Manufacturer:

JIEJIE

File Size:

318.93kb

Download:

📄 Datasheet

Description:

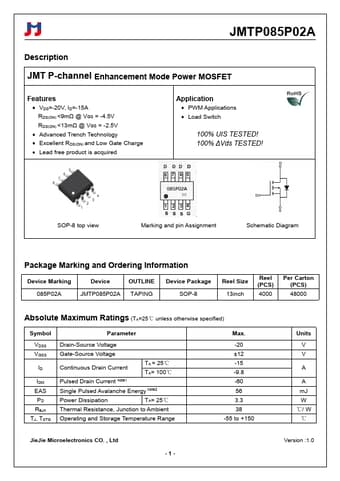

P-channel enhancement mode power mosfet. JMT P-channel Enhancement Mode Power MOSFET Features

VDS=-20V, ID=-15A RDS(ON) <9mΩ @ VGS = -4.5V RDS(ON) <13mΩ @ VGS = -2

JMTP085P02A Application

• Applications
• Load Switch 100% UIS TESTED! 100% ΔVds TESTED! SOP-8 top view Marking and pin Assignment Schematic Diagram Package Markin
